Used 2022 Shasta RVs Phoenix Lite 30BH

Fifth Wheel

Stock #PHO221593

Escalon, CA

SALE PENDING

1 of 31

+31

Specifications

Sleeps	7	Slides	3
Length	37 ft	Ext Width	8 ft
Ext Height	11 ft 10 in	Hitch Weight	1631 lbs
GVWR	11500 lbs	Dry Weight	9667 lbs
Cargo Capacity	1833 lbs	Fresh Water Capacity	40 gals
Grey Water Capacity	66 gals	Black Water Capacity	33 gals
Tire Size	16"	Number Of Bunks	2
Available Beds	Queen	Refrigerator Type	Stainless Steel Gas/Electric
Refrigerator Size	6 cu ft	Cooktop Burners	3
Shower Size	34" x 34"	Number of Awnings	1
LP Tank Capacity	30 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric Quick Recovery	AC BTU	15000 btu
Awning Info	15' Electric with LED Lights	Axle Count	2
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Radius	Electrical Service	50 amp
VIN	5XT3SPVB9NA001593

Features

Standard Features (2022)

Exterior Stand Out Features

Automotive Painted Front Cap W/ LED Strip Lighting (All New Design!)
UV-Treated, Weather-Resistant Decals W/ Updated/Modern PHOENIX Logos
UV-Resistant, White Gel Coat Exterior Sidewall Panels
Vacuum Bonded & Aluminum Framed Sidewalls W/ Rot Proof AZDEL® Composite Sidewall Panels (x2)
Durable (Textured) Silver Metal Radius Skirting
80% Privacy Tint Safety Glass Windows
UV & Corrosion Resistant TPO Roof W/ 12 Year Warranty
Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.)
LP Quick Connect Port
Exterior Back-Up Camera Prep
Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment
Exterior Marine Speakers W/ LED Light
Solid Step™ Entry
LED Entry Step Lights
Electric Front Jacks
Electric Rear Stabilizer Jacks
Accessory Receiver Prep
16" Radial Tires W/ Aluminum Rims
Spare Tire
Friction Hinge Main Entry Door
LED Exterior Running & Marker Lights
Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts

Living Stand Out Features

Modern Entertainment Center Prepped for 50" - 58" TV (Articulating TV Swing Arm Bracket w/ TV Opt.)
Solid Wood Cabinet Doors W/LED Accent Lighting (Where Applicable) (LED Accent Lighting X Edition Only)
Coordinating Decorative Slide Out Fascia
Bedroom, Bunkroom, & Living Room TV Prep (Where Applicable)
Decorative, Modern Window Box Valance/Lambrequins
Thomas Payne® Theatre Seating W/ Heat, Massage, LED Lights, & Cup Holders (Where Applicable)
Thomas Payne® Memory Foam Tri-Fold HAB Sofa (Where Applicable)
Congoleum® Carefree (Dove Grey) Resilient Sheet Flooring (USA Made W/ 3 Year Cold Crack Warranty)
Dual USB Charging Ports (Where Applicable)
Energy Efficient LED Interior Lighting Used Throughout (Where Applicable)
LED Motion Sensor Lights (Key Areas) (Where Applicable)
AM/FM/CD/DVD Player W/ Bluetooth
Roller Night Shades
High BTU Output, Modern Electric Fireplace

Kitchen Stand Out Features

Solid Wood Cabinet Doors W/LED Accent Lighting (Where Applicable) (LED Accent Lighting X Edition Only)
Modern Ebony Hardware
Large Transom Window At Cooktop Backsplash Location
Modern High Rise Kitchen Faucet
Modern LED Backlit Boxed Kitchen Island Lighting
Solid Hardwood Drawer & Cabinet Faces
Solid Lumber Core Cabinet Stiles
Pre-Drilled & Screwed Cabinetry
Full-Extend Ball Bearing Drawer Guides (75# & 100# Guide Capacities)
Stainless Steel 8 Cubic Foot Refrigerator
Stainless Steel RV Microwave
XL Stainless Steel Oven W/ Residential Cooktop, Glass Cover, & Piezo Ignition
Extra Deep Farm Style Single Basin Sink (Stainless Steel)
Durable & Seamless Thermofoil, Granite/Marble Style Counters (No T-Mold & Heat Resistant)
Matching Thermofoil Sink Covers

Bath Stand Out Features

Large Shower W/ Sliding Glass Doors
Large Privacy Dome Skylight
Power Ceiling Vent Fan (12 Volt)
Heat Duct & A/C Venting W/ Rotating/Closing Louvers
Large Medicine Cabinet W/ Mirror
Large Sink W/ Seamless Thermofoil Lav (No T-Mold)
Large Linen Closet
Decorative Wood Plank With Metal Towel Hooks
LED Motion Sensor Light
Large Porcelain Toilet W/ Foot Flush

Bedroom Stand Out Features

Large Wardrobe W/ Hanging Storage
Residential 60” x 80” Pillow Top Mattress & Designer Bedspread
Satellite & Cable TV Hook-Up W/ TV Prep
Bedside Night Stands (Where Applicable)
Hidden Compartmentalized Storage/Drawers Under Bed (25RE, 274BH, 284RL, 30BH, & 30RLS Only)
Dual USB Charging Ports
Dual 110 Volt Outlets At Bed (Where Applicable)
Ducted A/C Vents W/ Rotator/Closing Louvers
Bedroom Heat Registers
Roller Night Shades

Construction Stand Out Features

Residential 5" Truss Rafters (16" On Center)
Full Walk On 3/8" Roof Decking
Vacuum Bonded & Aluminum Framed Sidewalls W/ Rot Proof AZDEL® Composite Sidewall Panels (x2)
6 Layer, Bonded & Aluminum Framed Main Floor Structure
Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber)
Weather Shield+™ Space Age Reflective Technology (Underbelly, Roof, Slides & More!)
Weather Shield+™ Unobstructed & Insulated Pass-Thru Storage W/ Built-In Tool Storage
Weather Shield+™ Ducted Furnace to Enclosed, Insulated, & Heated Underbelly
Weather Shield+™ Heated & Enclosed Gate Valves
Weather Shield+™ R15+ Sidewalls, R30+ Floor, R38+ Roof
Dexter® E-Z Lube® Axles
Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts

Utilities Stand Out Features

Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.)
LP Quick Connect Port
Exterior Back-Up Camera Prep
Hot/Cold Outside Shower
Black Tank Flush
Wire, Frame, & Prep For 2nd (Opt.) Air Conditioner (Fully Ducted)
15,000 BTU Fully Ducted A/C
50 AMP Service W/ Detachable Marine Cord
Dual Zone Thermostat/Controller
Quick Recovery 6 Gallon Gas/Elec. Hot Water Heater (18 GPH)
RV Battery & Battery Box
12 Volt Battery Disconnect Switch
Winegard® Air 360™ HDTV/Radio Dome Antenna
Prewired For Optional Winegard® Connect™ 2.0 WIFI Extender or 4G + WIFI Extender Dome
Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds
Exterior TV Hook-Up
Dual 30# "Saddle Storage" LP Bottles W/ Auto Change Over

Interior Options

Two Updated Modern Décor Options (Mahogany Bay & Silver Beach)
10.7 Cubic Foot Stainless Steel (12 Volt Only) Refer IPO 8 Cubic Foot Refer
12 Cubic Foot Stainless (Gas/110 Volt) Refer IPO 8 Cubic Foot Refer (274BH Only)
17 Cubic Foot Stainless (12 Volt Only) Refer IPO 8 Cubic Foot Refer (274BH Only)
50" LED Television
58" LED Television (284RL Only)
50" TV In Outdoor Kitchen (284RL Only)
Brazilian Walnut Free Standing Table & Chairs W/ Leaf (Storage In Chairs)
Tri-Fold HAB Sofa IPO Theatre Seating (25RE Only)
Comfort Air® Fan (Kitchen Only)

Exterior Options

2nd 13.5 A/C In Front Bedroom
Electronic Heated Holding Tanks
4-Point Electric Auto-Leveling System
2" Accessory Receiver
Roof Mounted Solar Panel

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Fast and friendly !
Fast and friendly ! Staff is the best around. Highly recommended ! Our new go-to place for all our RV needs.

Ron
Real deal
Tony and crew are the REAL DEAL! Never a time that I felt I was being blown off with any concerns/questions. The atmosphere at the shop is positive and helpful. Tony has a wealth of experience and has always provided me great feedback to any/all questions I've had. The shop work is top notch. If you're

CJ
excellent service
We have been doing business with Referral Auto Group since we bought our motor home in 2020. Tony and his team have provided excellent service! They recently set up our vehicle to flat tow behind our RV and did a wonderful job. The customer service is great and the staff is knowledgeable. If you buy

Janice

We are here to help, call us at
209-404-2200 or Contact Us

We are here to help!

209-404-2200
Contact Us
Get Lowest Price

Referral Auto Group is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @209-404-2200 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2022 Shasta RVs Phoenix Lite 30BH

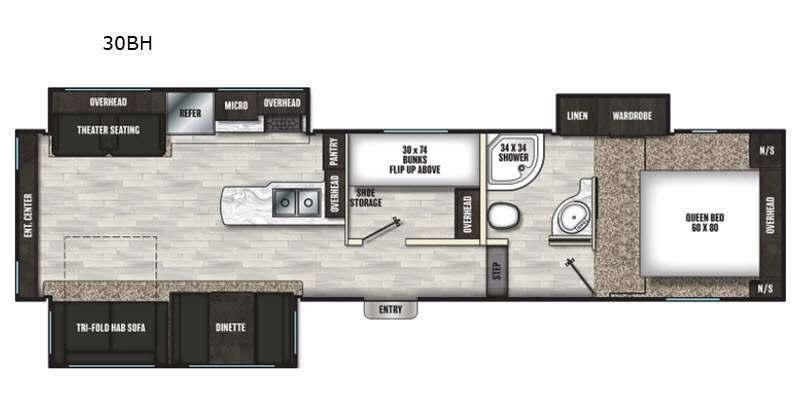

30BH Floorplan
